ANAN-G2 Ultra HF & 6M 100W Ultra High Performance SDR

Pre-Order
$4495.00 $4295.00
  • Description
  • Technical Specifications

Introducing the ANAN-G2, the new generation ultra high performance SDR

The G2 Display model has been upgraded to the G2 Ultra:

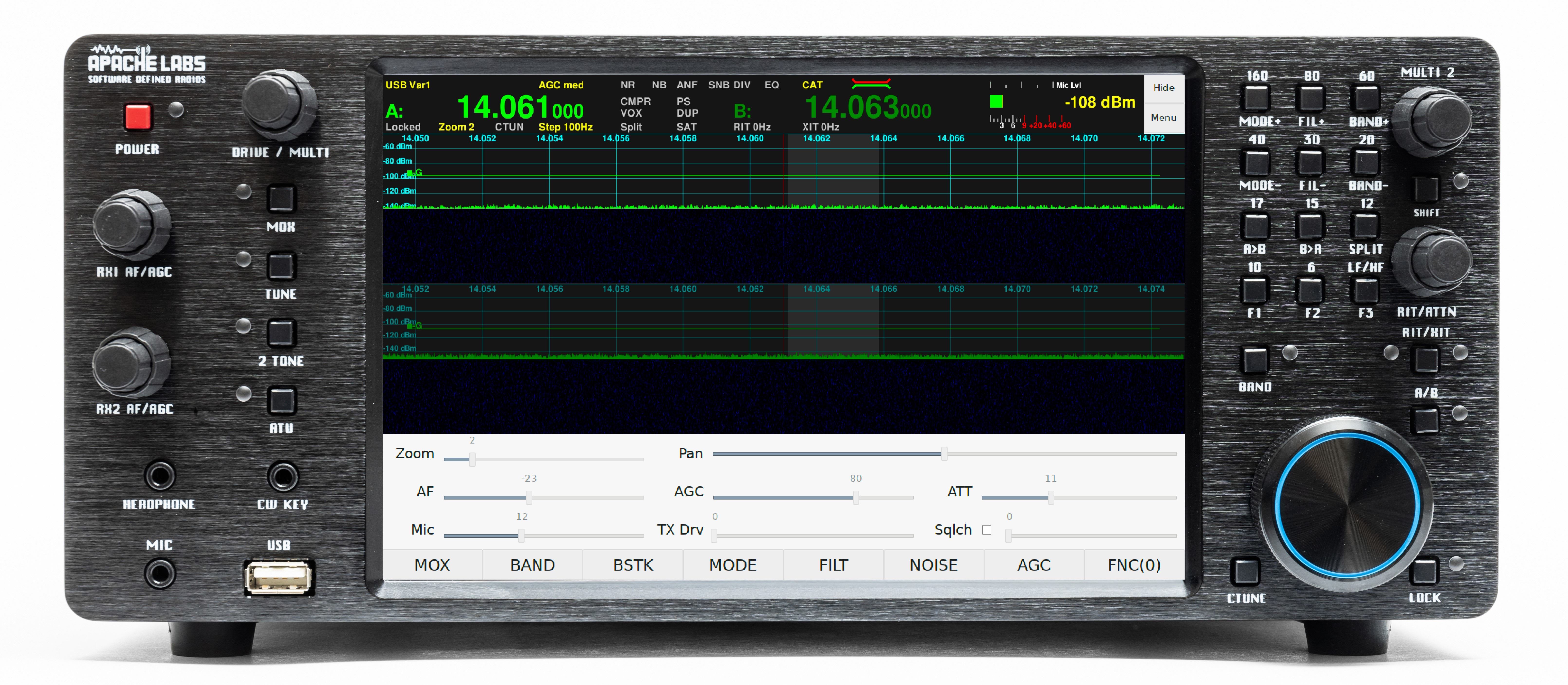

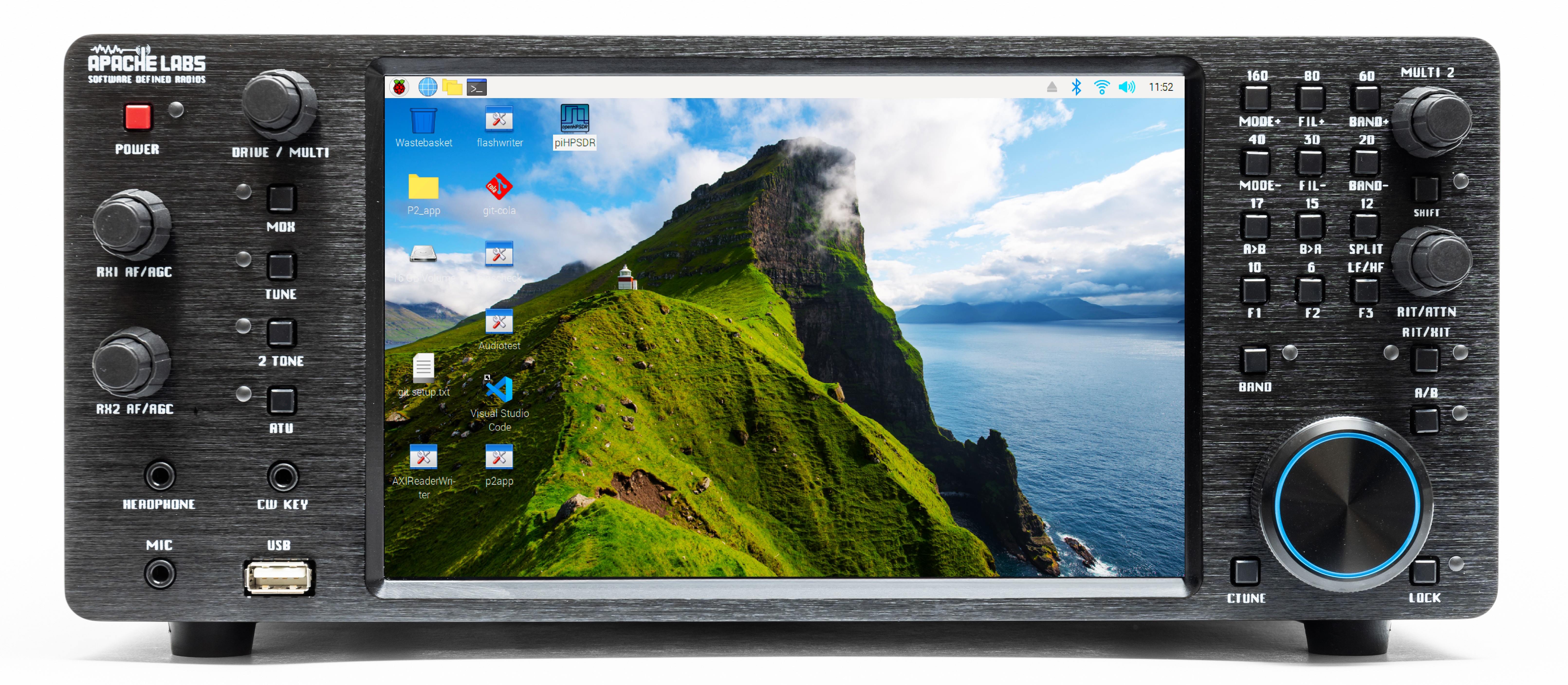

1. Higher resolution 8 inch Display allows for much better visibility of the GUI.

2. Front Panel with a wider array of control knobs/buttons and LED function indicators.

3. Future capability of using these front panel controls  with Thetis (whilst using Thetis on your PC/Laptop).

3. Ergonomic layout of controls for ease of operation.

4. CNC machined Aluminum Front panel for added isolation and shielding.



Apache Labs now proudly Headquartered out of California, USA

Local US support & Service! Any Questions please call:

949-591-6895 (Monday-Friday 10AM - 5PM PDT)



Industry leading 2 Years Manufacturer Warranty

ships in 2 weeks





Please Note that Apache Labs does not accept payment via Online Bank Wire transfers due to online fraud.



Advantages of ANAN-G2:

  1. Processing Capability: The ANAN-G2 is equipped with a large FPGA boasting an impressive 930 GMAC/s of processing capability and a tightly integrated on-board Quad Core SoC. This substantial processing power enhances its ability to handle complex tasks and sophisticated signal processing algorithms required to implement PureSignal, Diversity Reception and the world's most advanced noise mitigation algorithms such as NR2!

  2. Flexible Use Cases: One of the major advantages of the ANAN-G2 is its remarkable flexibility in use case scenarios. While delivering exceptional receiver and transmitter performance similar to its predecessors, the G2 takes a leap forward by providing enhanced processing capacity, making it capable of handling a wide range of tasks and applications.

  3. Stand-Alone Operation: The ANAN-G2 offers the convenience of stand-alone operation without requiring a connected PC. This feature provides the freedom to use the device in situations where a computer setup might not be feasible or necessary.

  4. Compatibility with Thetis Software: Users have the option to utilize the ANAN-G2 with a PC running the Thetis software. This compatibility enhances the device's usability by providing access to a comprehensive software suite for control, signal processing, and visualization.

  5. Future-Proof Remote Operation: The ANAN-G2 is designed with hardware capabilities for remote operation, though this feature is currently slated for future release. This would allow users to operate the device remotely, expanding its usability and convenience.

  6. Rich I/O Options: The ANAN-G2 boasts an array of rich I/O options, including two HDMI 4K video outputs, Gigabit Ethernet, three USB ports, a 7-inch touch panel, and knobs/buttons for a traditional radio experience. This extensive set of I/O options ensures connectivity with various devices and accessories.

  7. Broadcast Quality Audio: The device features an XLR balanced microphone input with a built-in preamp, guaranteeing broadcast-quality audio performance. This feature is advantageous for users seeking high-quality audio in their transmissions. PureSignal ensures that your IMD products are way down and not causing any splatter on the bands, did you know that the G2 has 20dB better IMD than even a Class A transmitter whilst maintaining the efficeincy of a Class AB design.

Watch this to get to learn more about the Gen2 Platform



  ANAN-7000/8000DLE MKII ANAN-G2
FPGA DSP Peak Processing capacity 240 GMAC/s 930 GMAC/s
Number of DDCs 8 10
Stand-Alone Capability No Yes
Thin Client/Remote Capability No Hardware Capable (Future Feature Set)
Protocol 2 Support Beta Fully Supported
Built-in CPU No Yes
Balanced Audio Input No Yes











Specifications:

General Specifications:

  • Architecture: Direct Sampling DDC/DUC Transceiver
  • Interface: Ethernet and PCIe (Internally)
  • Full Desktop Linux OS
  • Phase Noise (Clock): -149dB @ 10Khz
  • TCXO Stability (Typical): /- .1 PPM
  • Modes: CW, SSB, NFM, AM, Digital

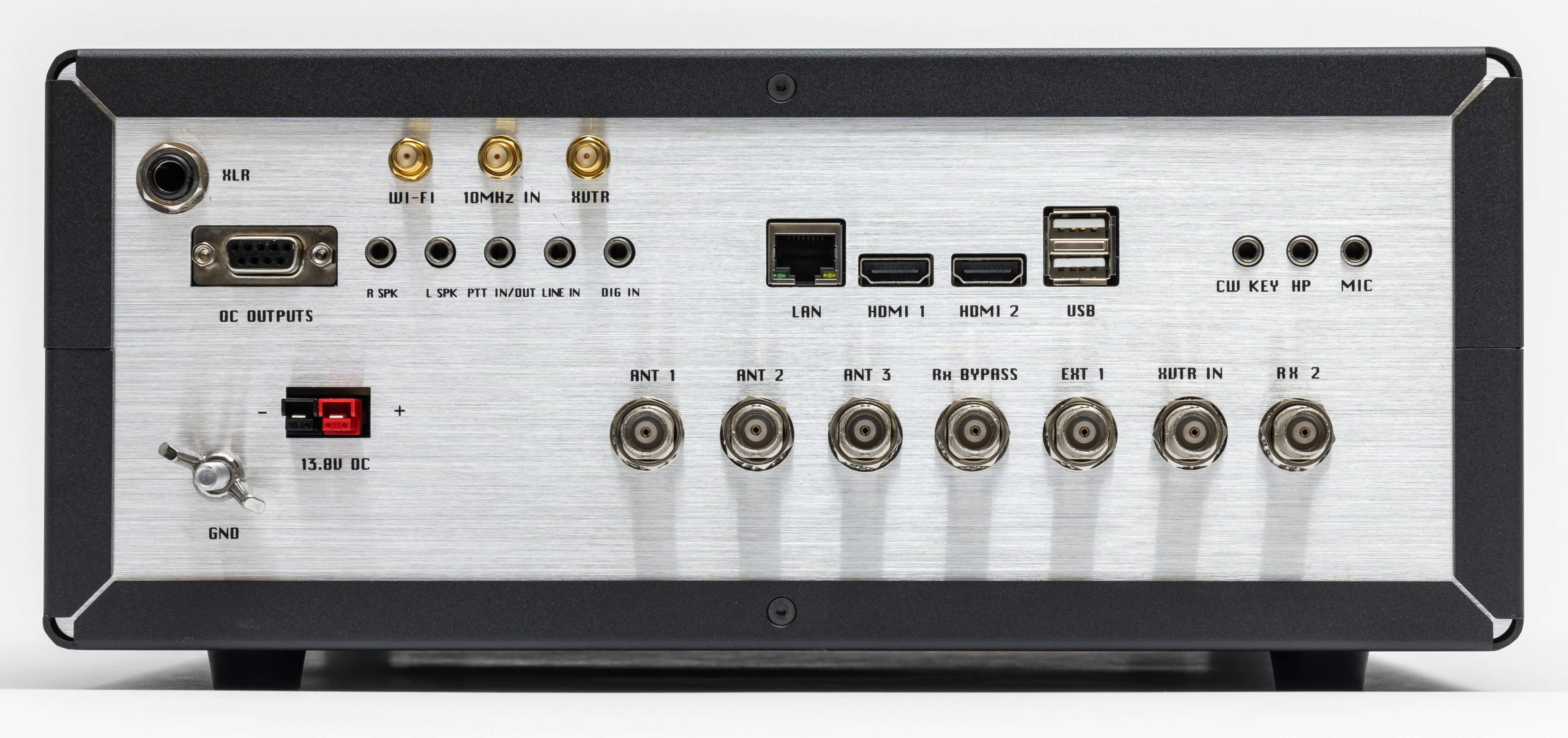

  • Antenna Ports: Three BNC 50 ohms Software Configurable Ports, Three BNC ADC1 Bypass and Loop in ports, One BNC for RX2
  • Frequency Resolution: 1 Hz



Electrical Specifications:

  • 13.8v DC @ 25A, 2.5A Receive/25A Transmit



Mechanical Specifications:

  • 7.5Kg (approx. Weight)
  • Dimensions: 314MM (W) x 138MM (H) x 368MM (D) (Not including extrusions).



Receiver Specifications:

  • Receiver Architecture: Direct Down Conversion
  • Dual 16 bit Phase Synchronous ADCs
  • Independent filter banks for each ADC
  • 6M LNAs
  • Frequency Coverage: 9Khz to 60Mhz
  • Attenuator: 1-30dB step attenuator
  • Reciprocal Mixing Dynamic Range (RMDR): 116dB @ 2Khz offset
  • Receiver Phase noise: -149dB @ 10Khz
  • Image rejection: 90dB
  • Hardware support for 10 independent receivers assignable to either ADC



Transmitter Specifications:

  • Transmitter Architecture: Direct Up Conversion
  • DAC Resolution: 16 bit
  • RF Output Power: 100W PEP SSB, FM, RTTY, Digital; 1-30W AM, 100W CW
  • IMD: IMD3 typically -68dB below PEP @ 100W output on 20M
  • Harmonics: Typically better than -43dBc on HF and -60dBc on 6M
  • Carrier and Opposite Sideband Suppression: Better than -80dBc
  • Transverter IF Output: 0db to 15dB



IOs:

  • Audio Barrel Line In, Digital Inputs, PTT in, PTT Out
  • DB9 Seven Software Configurable Open Collector Outputs
  • SMA XVTR, 10Mhz reference Input
  • 3.25mm Barrel Mic, CW Key, Headphones and two Powered Speaker Outputs
  • Mini XLR Mic Input with preamp.
  • RJ45 Ethernet LAN Connector
  • 2 x HDMI 4K Video Outputs
  • 3 x USB Ports
