Reintroducing the ANAN-10E, this is a Pre-Order, ships in 8 Weeks. There is a special Pre-Order pricing which will expire once the initial production lot is sold out, to place yourself in the Queue you need to place a Pre-Order, you will only be charged once your Order is ready to Ship. For any queries on the product email support@apache-labs.com, due to high call volumes please DO NOT call our support number.

Customers awaiting the 10W PA and Hermes enclosure should expect priority shipment based on the above timeline.

- Improved Hermes PCB Layout

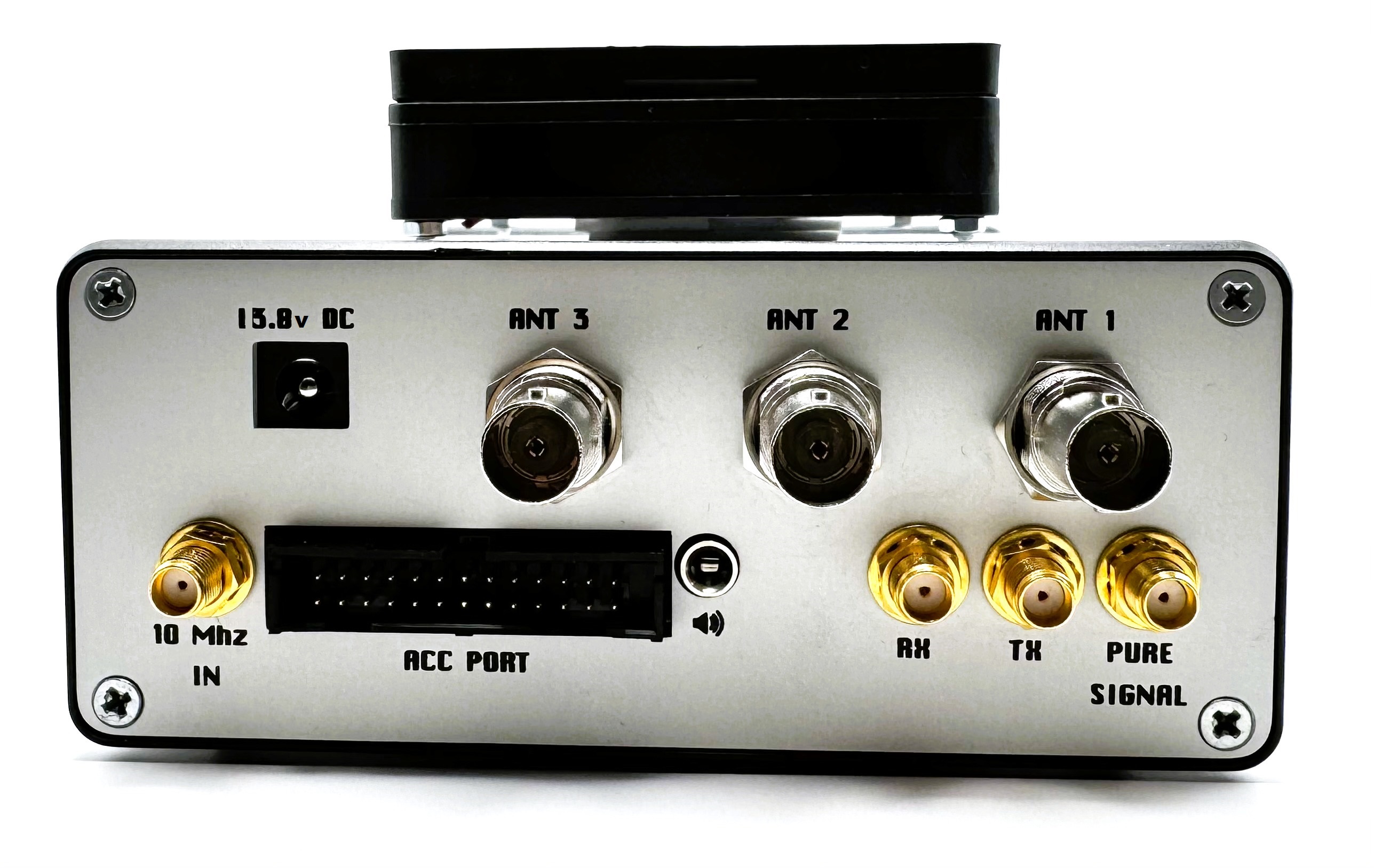

- Support for PureSignal with a Dedicated PureSignal Port

- 10-20W on HF and 8-10W on 6M

- Hardware Support in Thetis and PiHPSDR

Declarations of Conformity
The ANAN-10E Transceiver complies with FCC Part 97 rules for the Amateur Radio Service.

Specifications & Highlights:

• Continuous, uninterrupted, receive coverage from 10KHz to 55MHz.
• 14bit ADC and DAC
• Supports 2 fully independent receivers (sharing the same antenna - and with suitable PC software)
• Each receiver can display 48/96/192kHz of spectrum
• Blocking Dynamic Range (ARRL Method) no detectable gain compression below ADC overload
• Transmit and receiver image rejection > 110dB
• Full duplex operation, any split over entire 160m to 6m range.
• Transmitter two-tone 3rd order IMD of -50dBc on 20m @ 10W PEP
• 10-20W RF output on 160 – 10m amateur bands, 8-10W on 6m
• Built-in high performance preamp, with a noise floor typically -135dBm in 500Hz
• Software-selectable 31dB input attenuator in 1dB steps
• High performance receiver –  (ie Dynamic Range typically 125dB)
• FPGA code can be updated via the Industry Standard TCP/IP network Ethernet connection
• Seven user-configurable open-collector outputs, independently selectable per band and Tx/Rx (for relay control, etc - with sequencing via PC code)
• Separate open-collector PTT connection for amplifier control, etc, with sequencer
• Microphone PTT jumper-selectable from tip or ring connection
• Bias for electret microphones via jumper
• Four user-configurable 12 bit analogue inputs (for ALC, SWR etc)
• Three user-configurable digital inputs (for linear amplifier over temperature, etc)
• Operate from a 13.8v DC supply
